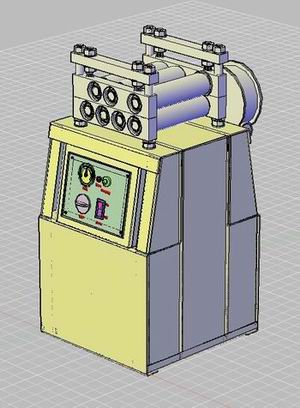

Straighner Machine

Model no.  S014

Straightner machine is used in roll forming plant to help in reel uncoiling  in addition ;It is used as a feeding unit to the next step in production line .

The straightner  machine has 2/3 straightening rollers with vertical adjustment and has an electric driven feeder.The machine is supplied with a control  panel to operate it  and control its speed.

Rollers assembly

Technical specifications :

  • Number of straightening rollers  2/3.

  • Number of feeding rollers  2.

  • Vertical adjustment of straightning  25 mm.

  • Maximum sheet width 25 cm .

  • Maximum sheet thickness 2 mm

  • Drive motor 5 hp electric motor 380 volt.

General dimensions of machine







Manufacture yourself



Exact Qualiy

Lower Price



Now

You can buy

drawings only and manufacture yourself



You can buy machine drawings only from CADshop and manufacture at any workshop you know with required quality and lower price



To check designs press here
