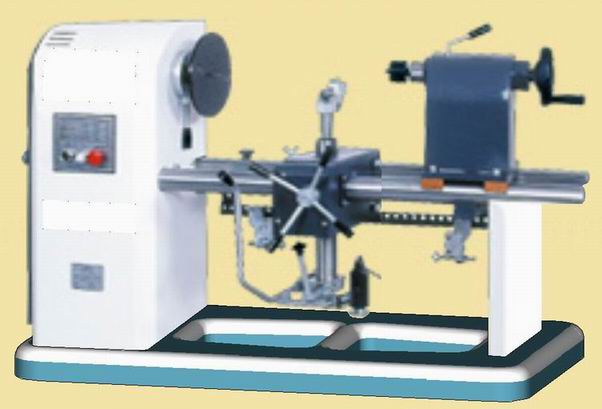

Rose Engine

Model No. RE029

Rose Engine is used to produce ornaments in continuous production with identical dimension. The engine can generate ornaments on surfaces or bodies (2D&3D )

Complicated ornaments could be generated from one piece of wood or any other soft material; like ( MDF )

Rose engine products is generated by continuous adjustment of cutting tool in 9 directions ( 9 degrees of freedom ) during operation.

Some of these adjustments is controlled automatically by means of  cams which is cut typically according to the required body profile

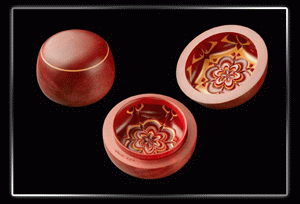

Samples of rose engine products

Technical specifications:

  • Rose engine body is made from steel sheets and sections which enables reliable and continuous operation.

  • The work piece is fixed on headstock which rotates at high speed for turning operations ( Lath ) and rotates at very low speed fro indexing .

  • Tailstock has a rotating  spindle which holds a cutting edge used for face ornaments .

  • Long work pieces could be operated by holding it by tail stock .

  • Tool carriage is traveling along the engine bed to generate the profile of desired shape

  • Carriage motion is controlled automatically by means of set of cams which are easy changeable for different profiles

  • Cams are cut out from a piece of sheet  metal or hard wood with 10 mm thickness and cam profiles are obtained from desired cross section, longitudinal section, face ornaments ............etc.

  • Cams are used mainly to produce bodies (3d profiles) ,while rose engine could be used without cams to produce circular face ornaments and it is controlled manually .

  • Rose engine is controlled through a sophisticated gear box which is operated by electric motor 220 V and 2 KW.

  • A work piece with 40 cm length by 40 cm diameter cold be produced.

  • Overall dimensions is 80 cm length by 40 cm width and 65 cm height.

  • Rose engine weight is 155 kg.







Manufacture yourself



Exact Qualiy

Lower Price



Now

You can buy

drawings only and manufacture yourself



You can buy machine drawings only from CADshop and manufacture at any workshop you know with required quality and lower price



To check designs press here



To order design
